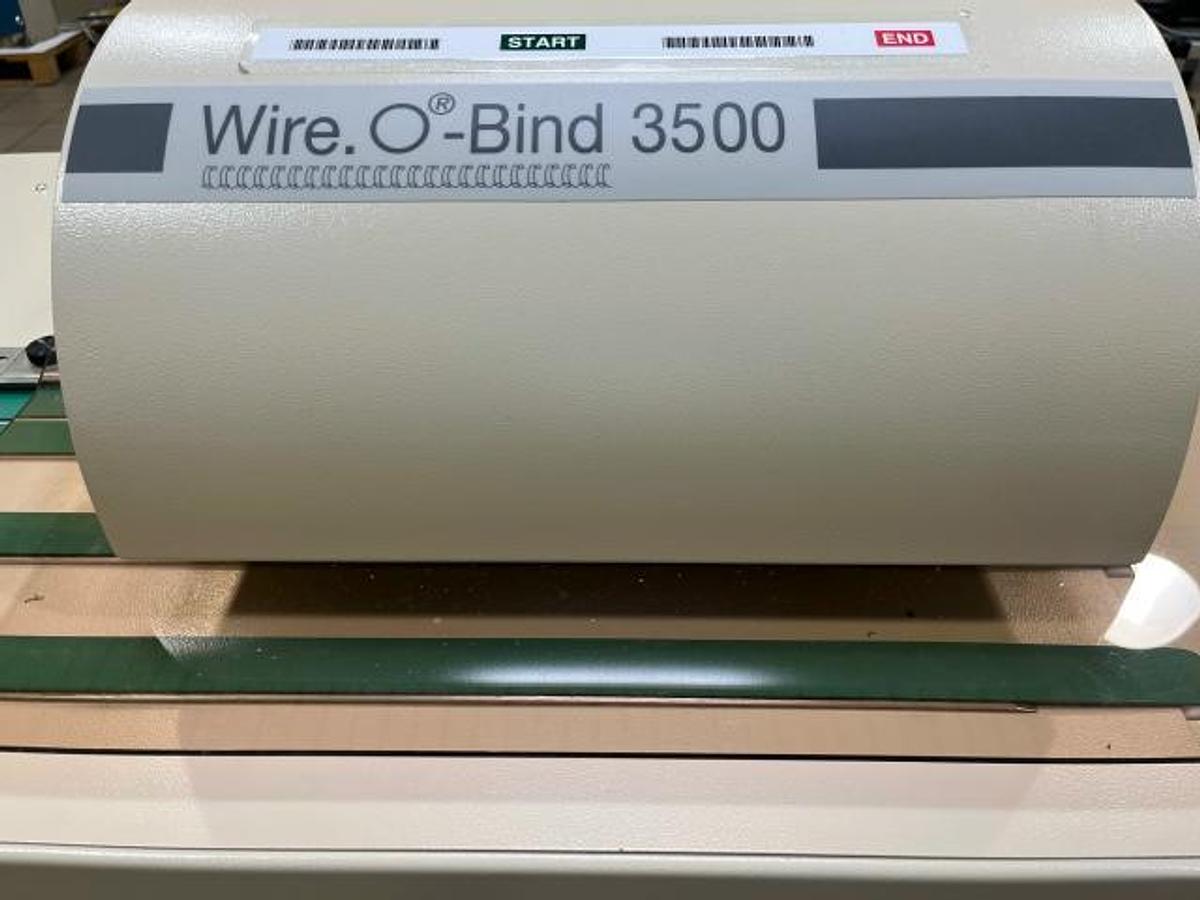

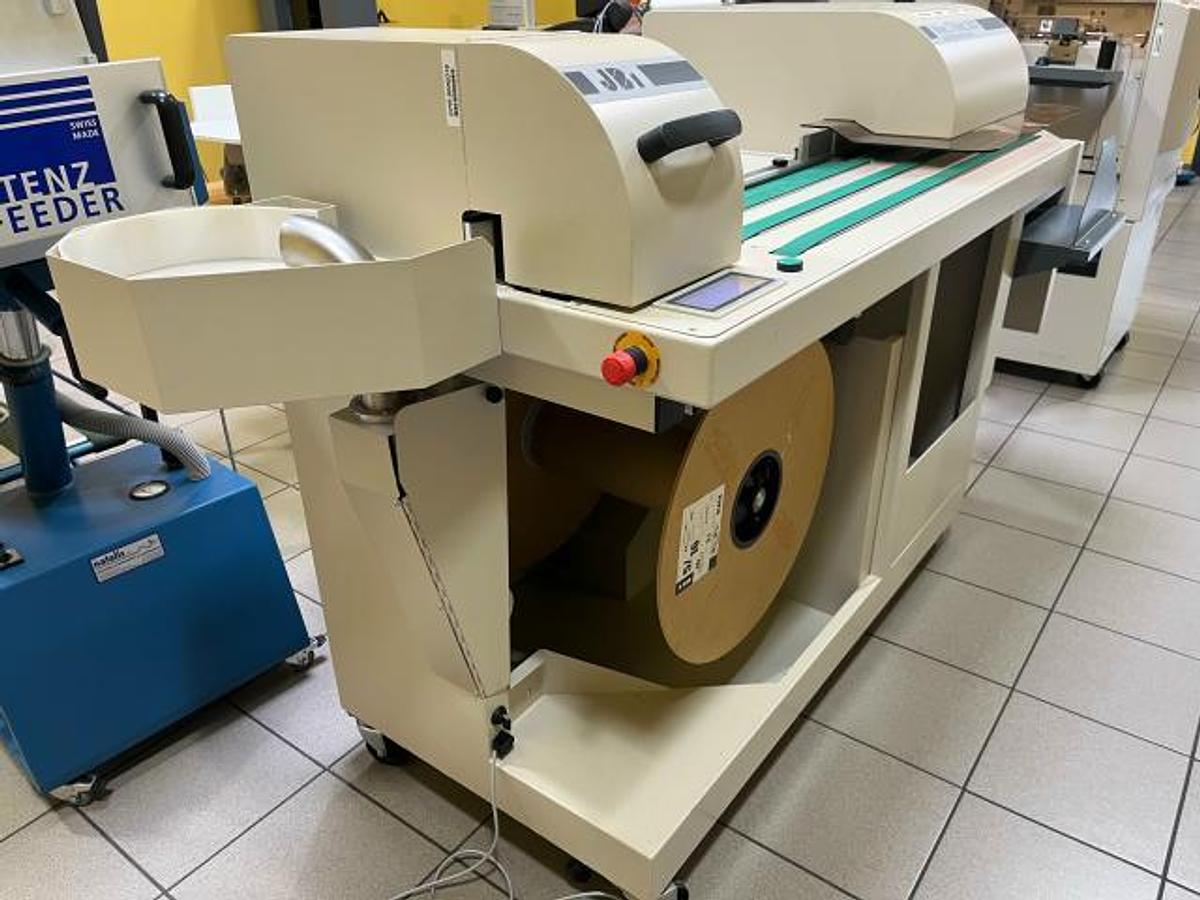

2009 JBI JAMES BURN INTERNATIONAL WOB 3500

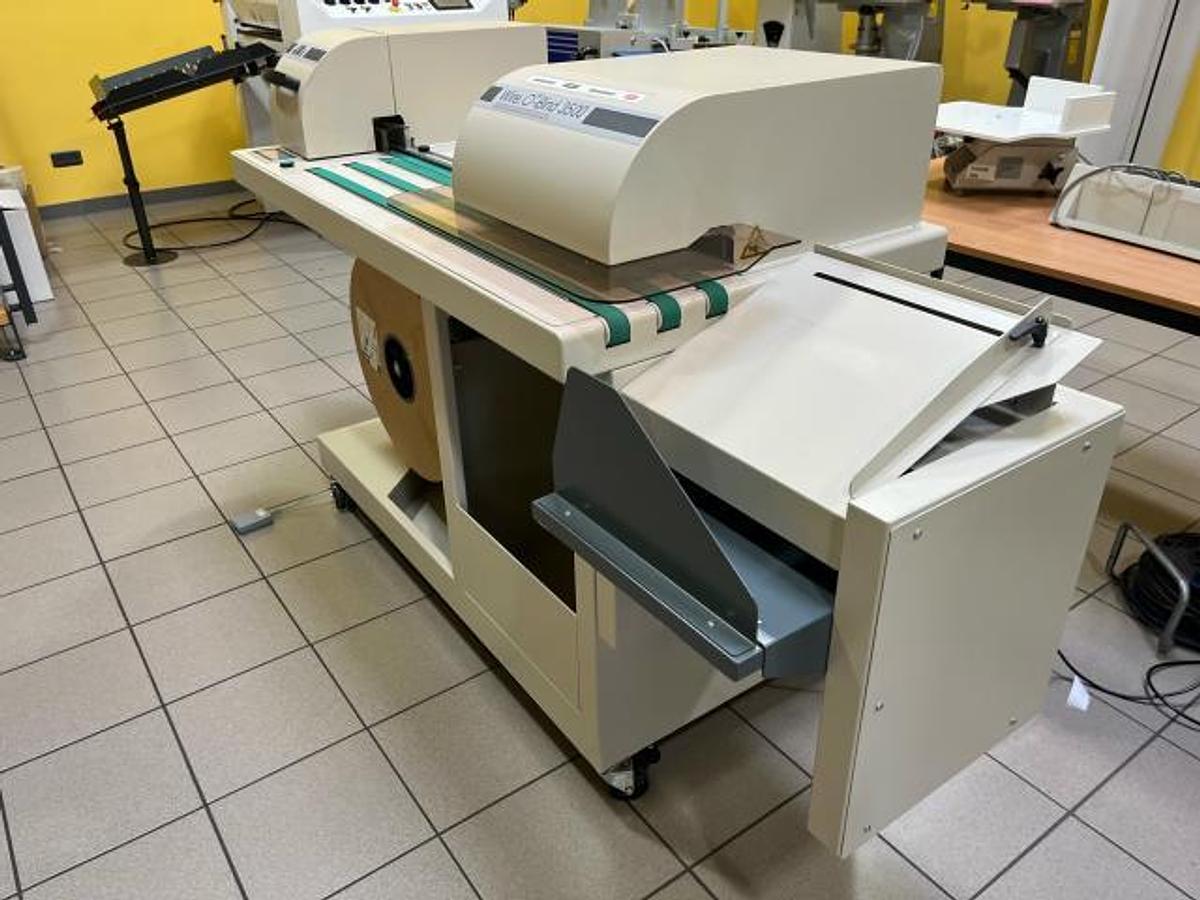

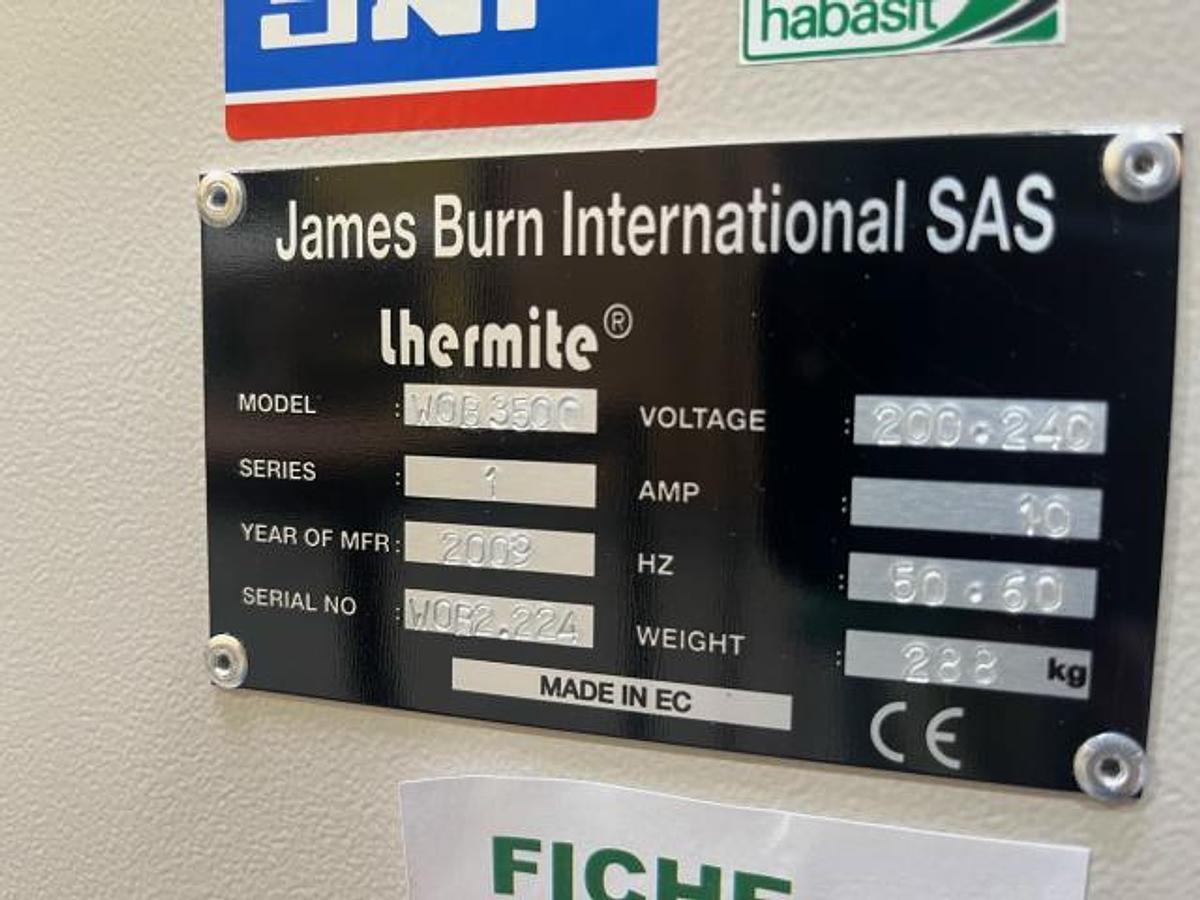

semi-automatic binder JAMES BURN INTERNATIONAL WIRE-O BIND 3500 (Lhermite binding machine) model WOB 3500 serie 1 n°WOB2.224 year 2009

Highly successful companion to the Alpha Doc® and DocuPunch® punching machines, the Wire-O® Bind is a high speed, instantly adjustable binding machine with an unique closing unit that positions and feeds the book without the need for stops or paper guides. It binds documents with 1/4" to 1-1/4" wire at a rate up to 1000 documents per hour, depending on format, paper quality and operator skill.

• User-friendly and efficient :

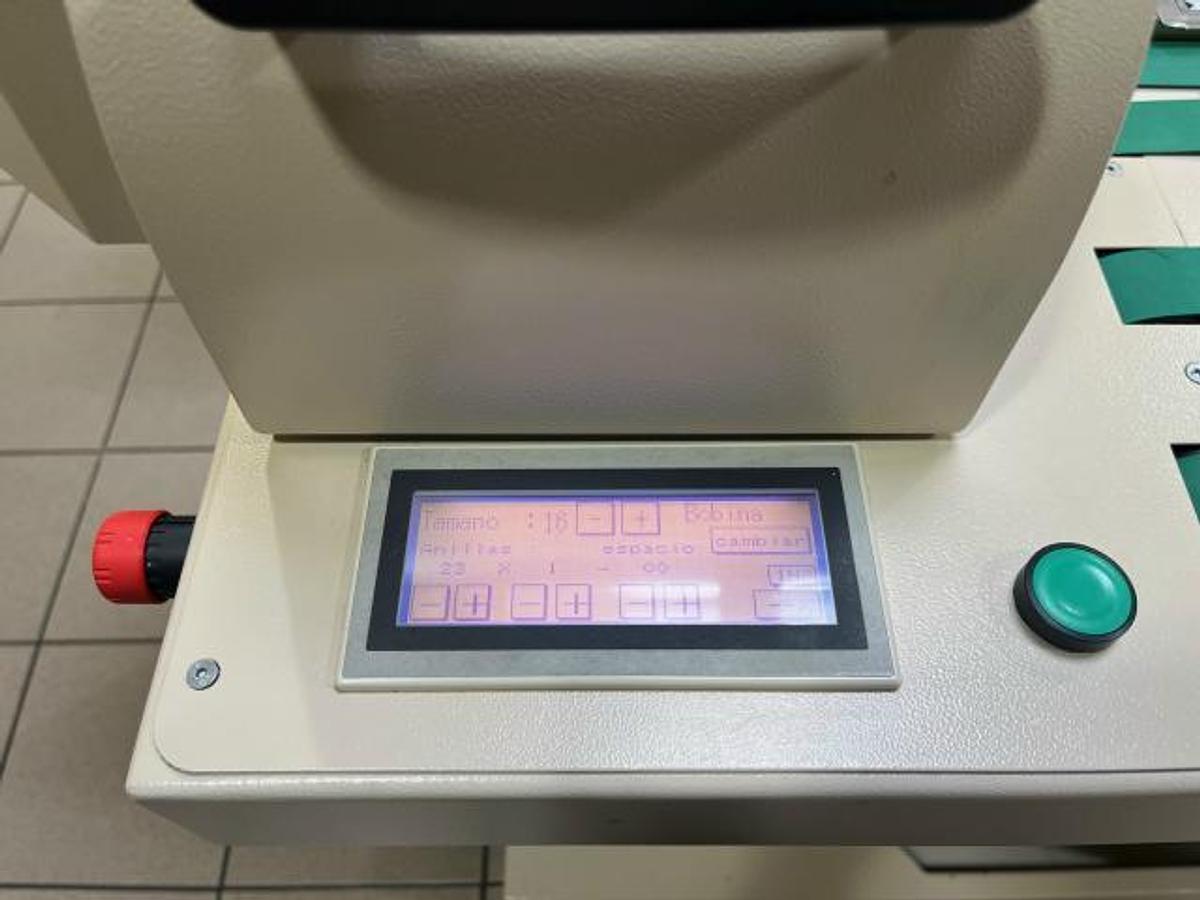

simple touch screen controlling all dynamic size and format adjustments, settings and changeovers : no special training required. Wire size changeovers in less than 5 minutes. Books delivered onto a static reception tray or on a conveyor belt.

• Versatile :

finishes all 3:1” and 2:1” pitch Wire-O® sizes from 1/4 to 1-1/4" with maxi 3 skip binds.

Finishes all documents with flush cut and oversize covers as well as tabbed sheets.

• Outstanding productivity :

500 to 1.000 books per hour depending on format, paper quality and operator skill.

Binding Formats : from 65 to 350 mm

Wire sizes : min. n°4 (1/4’’) – max. n°20 (1-1/4’’)

Book thickness : 1,5 mm à 28 mm

Hanger formats : N°3 – 76 mm min. – 250 mm max.

voltage : 220 Volts 1Phase

Dimensions : 211x88x118 cm

Net weight : 288 kg

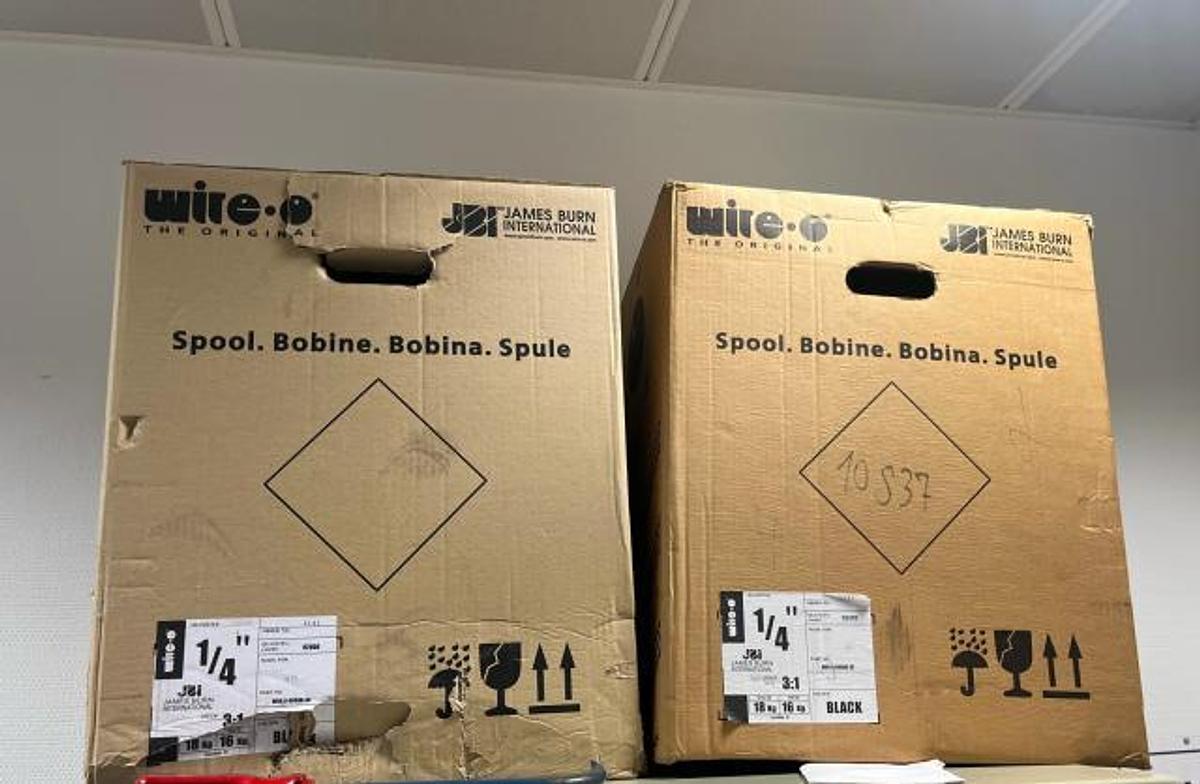

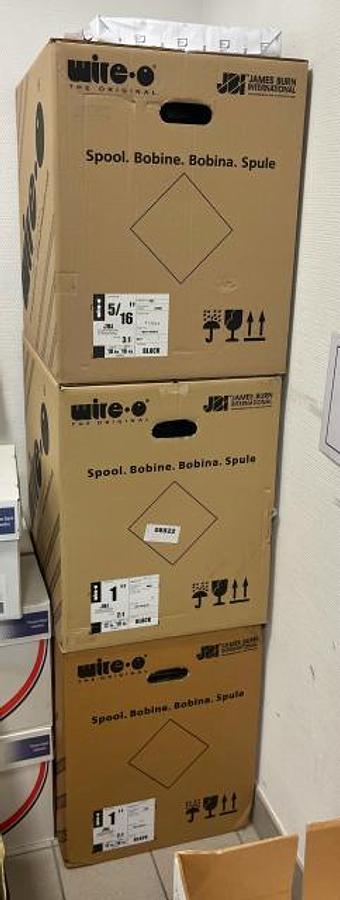

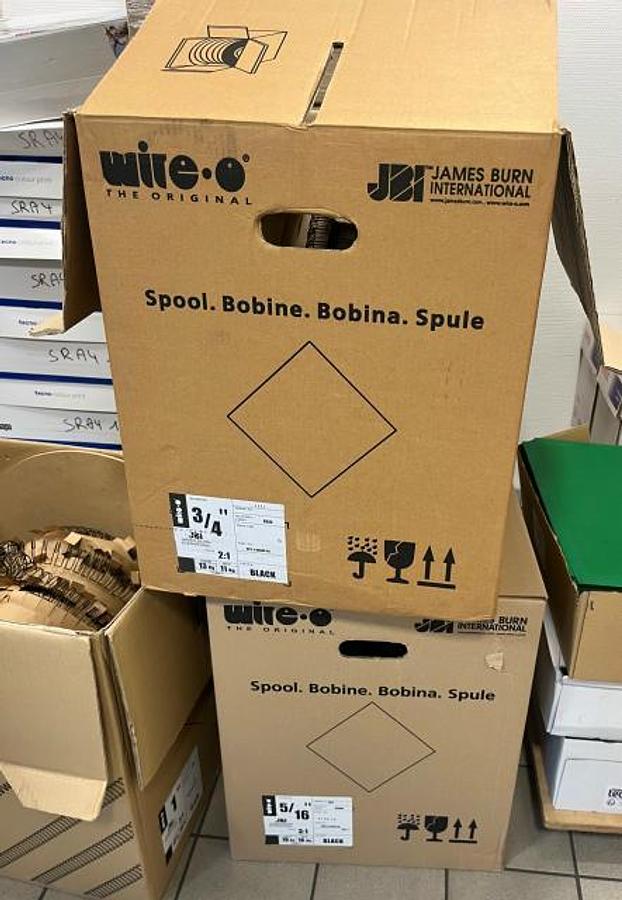

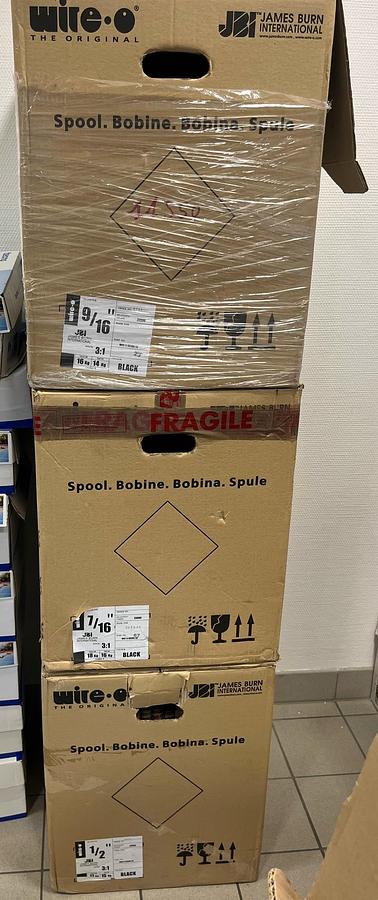

supplied with 1 set of consumables
