1997 POLAR-MOHR 92 ED

1997 POLAR-MOHR 92 ED

Grâce-Hollogne, Belgique

ouAppelez +32(0)4 252 43 32

Description

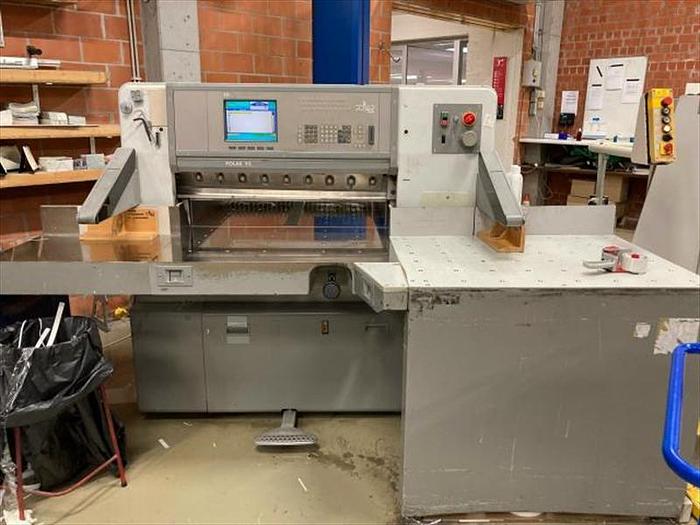

high-speed cutter POLAR 92 ED of 1997 N°6811006, for medium and large-size formats, cutting lenght 92 cm programmable top-of-the-line model for all cutting jobs automatic, hydraulic, with various functions and operating modes (full-function keyboard, process vizualization, programmable parameters specific to the job (clamping pressure, preclamping time, backgauge speed automatically displayed for each cut size, backgauge compensation.. serves also as a control center for complete cutting line, equipped for external programming (Compucut) as well as networking with Data Control High-resolution color display (TFT), block programming with graphic operator guidance, fast and easy knife change, frequency controlled backgauge, automatic and programmable clamping pressure , cut optimization, certfied safety GS with self-checking light curtain with individual circuit and computer, guards, finger protection, rear table protection, two-channel hydraulic system with knife upstroke control

Caractéristiques

FabricantPOLAR-MOHR
Modèle92 ED
Année1997
ConditionD'occasion
Numéro de stockro800-25330
Size92 cm
Cutting width (mm)920
Cutting height/clamp opening (mm)130
Table height (mm)900
Pression150-3500daN
Power required (kw)3
Voltage (v)380
Dimensions (l x w x h in cm)212x216x154
Net weight (kg)1.890
Age group1990 à 1999
Clamp opening13 cm
Feed depth92 cm
Front table depth65 cm
Table height90 cm
Weight1890 kg
Power3 kW
