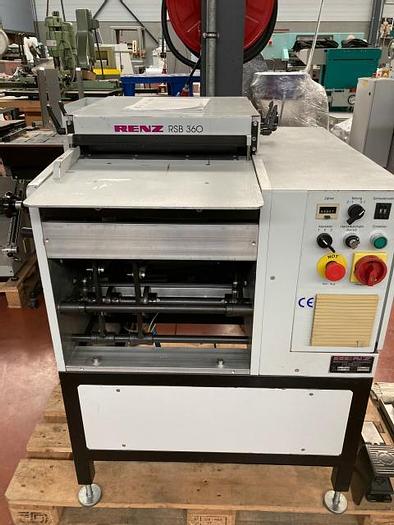

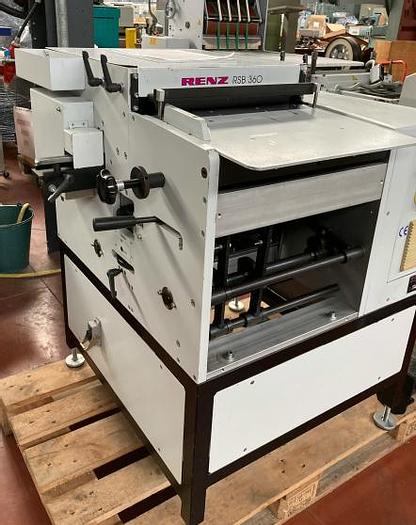

2002 RENZ RSB 360

Professional semi-automatic wire comb book binding machine RENZ RSB 360 year 2002 n°1002 for binding books and calendars using a single section of wire (no skip binding or calendar hangers) -

Closing bars from 1/4" to 1" (6,9 - 25,4 mm) included - Binding output up to 1.400 bound books p/hr*

Compact - Well engineered technology, Made in Germany

The machine is operated by a foot pedal and situated at a comfortable working height. Place the pre punched book on the binding table against the front and side stops. Next use the foot pedal to automatically clamp the pre punched book and engage binding table. The binding table moves forward into the closing bars allowing the wire comb to be closed around the pre punched book. After the wire has been closed the binding table moves back to original position releasing the bound book, allowing

for next pre punched book to be inserted.

Features :

Book binding speed is approximately 800 – 1.400 book/h*.

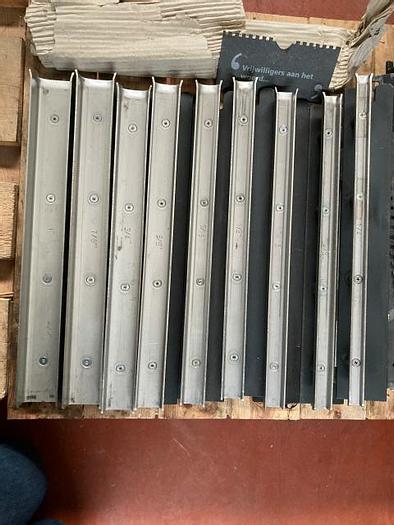

Completely equipped to close 10 wire diameters from 1/4" - 1" (6,9 - 25,4 mm )

No compressed air necessary

Binding width from 60 to 360 mm

Closing unit is adjustable for books up to 20 mm thickness

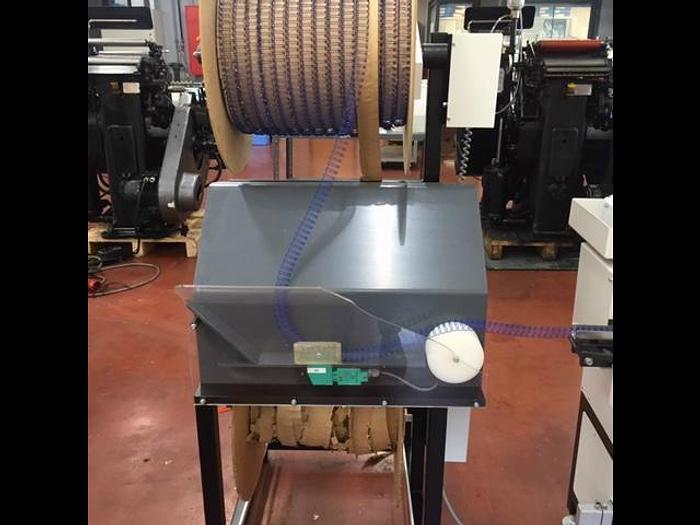

Fully automatic, sensor controlled wire spool un-winder with integrated separation paper re-winder; allows for smooth easy unwinding on all wire diameters.

Very low noise level

Short setup time due to QSA technology (Quick Size Adjustment)

No special training required

Very reliable due to cam controlled drive technology

User friendly control panel

Specifications :

Binding width bound edge : max. 360 mm - min. 60 mm

Binding width unbound edge : min. 60 mm

Maximum book thickness : 20 mm

Possible wire diameters : 1/4" - 3/8'' - 7/16'' - 9/16'' - 1/2'' - 5/8'' - 3/4'' - 7/8'' - 1" (6,9 - 25, 4mm).

Pitch type : 3:1, 2:1

Maximum speed p/hr : 2.000 Cycles p/hr

Effective speed p/hr : 800 - 1.400 p/hr*

Change over time from diameter or pitch : : 15-20 min

Power supply : 230 / 400 V 50 Hz / 3 ph

Measurements L x B x H : 160 x 120 x 140 cm

Required space: 1,9 m2

Weight : 350 kg
