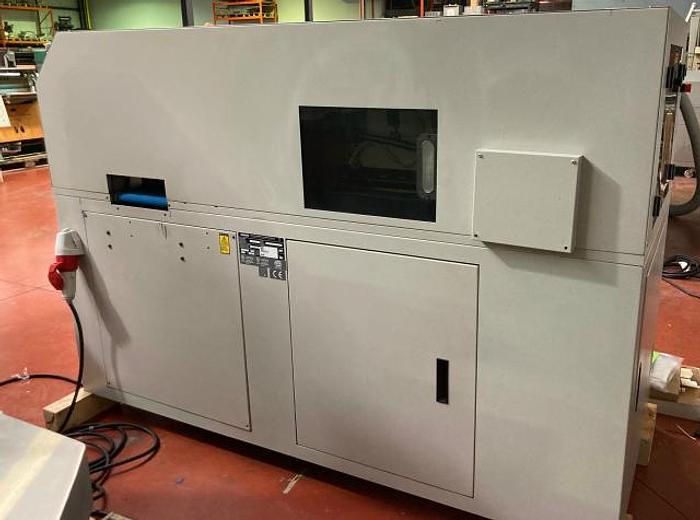

2008 CHALLENGE CMT 330

three-knive trimmer CHALLENGE CMT 330 of 2008 n°06120115 finishing soft-cover, perfect bound books at a rate of up to 400 books per hour, can be configured as a hand-feed off-line or in-line with perfect binders

full digital control with light-touch electronic keypad, Menu-Driven LCD Data/Graphic screen, easy to program with 99- Job Memory, computeur diagnostics, hydraulic cutting, adjustable clamp pressure, adjustable pneumatic gripper pressure

Min Book Size:  4" x 6" / 101.6 mm x 152.4 mm

Max Book Size: 9.5" x 12.5" / 241 mm x 317.5 mm

Max Book Size:          9.5" x 12.5" / 241 mm x 317.5 mm

Max Book Thickness: 2" / 50.8 mm

Max. Finish size : 228.6 x 304;8 mm

Min. Finish size : 101.6 x 152.4 mm

Min Trim:        0.125" / 3.2 mm

Max Face Trim:          5.5" / 140 mm

Speed  up to400 Books Per Hour (single book) / 1000 Books Per Hour (multi-book)

Memory:         99 Book Jobs

Set-up Time for Book Size Change:  15 Seconds

supplied with in-line configuration including in-feed conveyor (90x31x45 cm - 31 kg), cooling elevetor/tower (95x55x116 cm - 152 kg) and standard exit conveyor (120x31x101 cm - 39 kg)

total net weight  : 1.362 kg
