2009 KOMFI DELTA

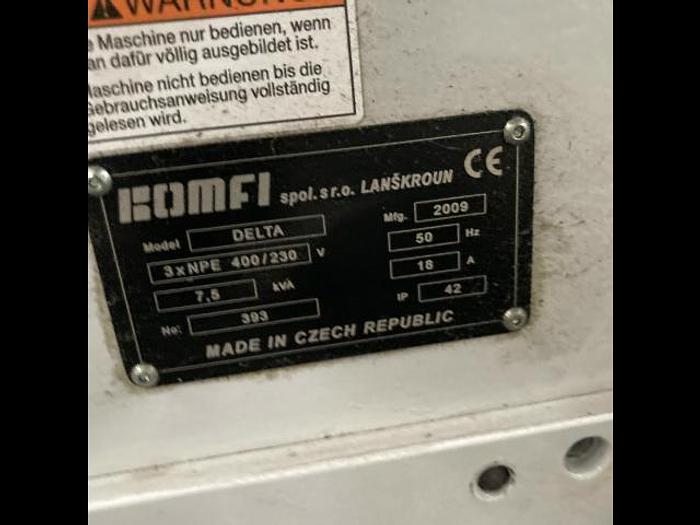

compact automatic DRY laminator KOMFI DELTA 2009 N°393, designed for medium and larger lamination orders up to the B2 format., designed for hot laminating all types of paper and cardboard with polyproylene thermo film, automatic high pile feeder with suction and separation

 Equipped with option stacker delivery and improved blower for sheets up to 400 gsm

Robust and reliable solution for on-demand and commercial lamination

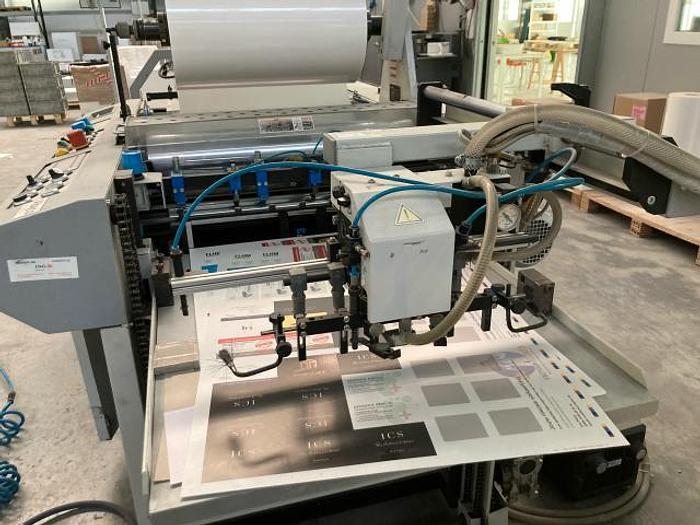

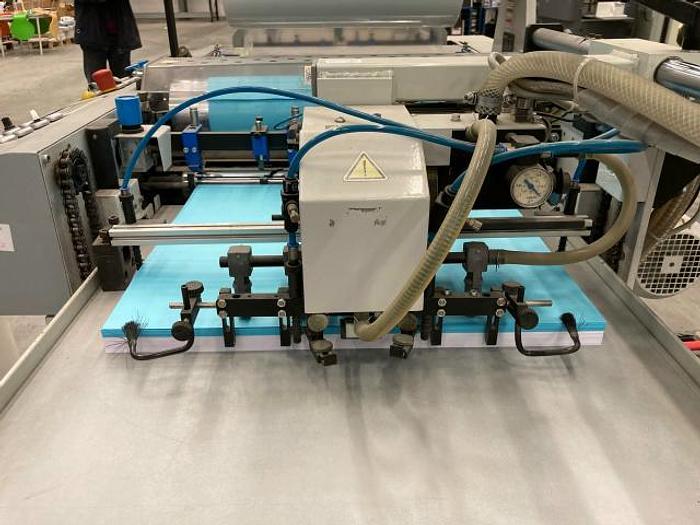

Automatic sheet feeding via Komfi designed feeding head

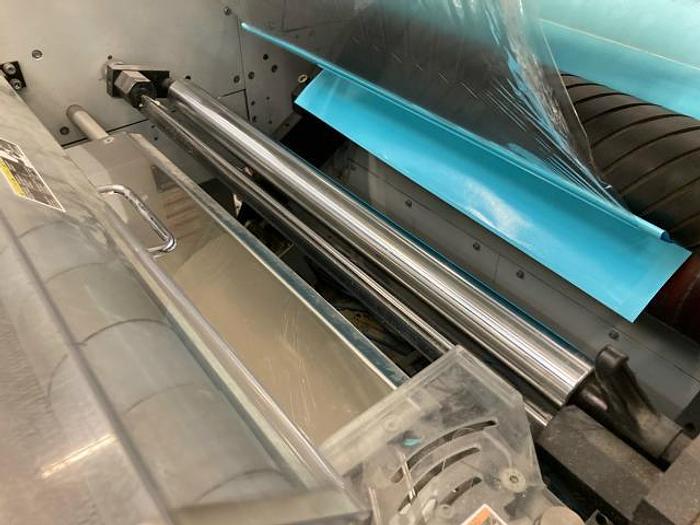

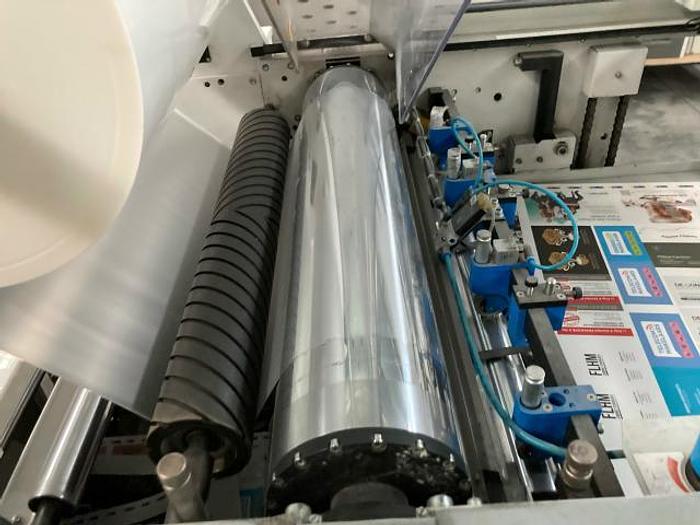

Laminating cylinder heated by 3-zones electrical heating system

Automatic sheet separation using using built-in perforator

Application: medium to high volume jobs·

·         Max. designed lamination speed 30 m/min

·         Max. machine performance suitable for nonstop run

·         Min. sheet dimensions 20 × 20 cm

·         Max. sheet dimensions 52 × 74 cm

·         Max. stack height 63,5 cm

·         Paperweight 135-350 g/sq. m.

·         Laminating film thickness 24-45 μm

·         Laminating film type OPP, PET, Nylon

·         Laminating roll heat-up time (25-100 °C) about 3 min

·         Recommended laminating temperature 135 °C

·         Sheet overlap accuracy ±1 mm (at the stable lamination speed)

·         Machine dimensions, incl. the unloading table (L × W × H) 260 × 123 × 146 cm

·         Machine weight : 860 kg
