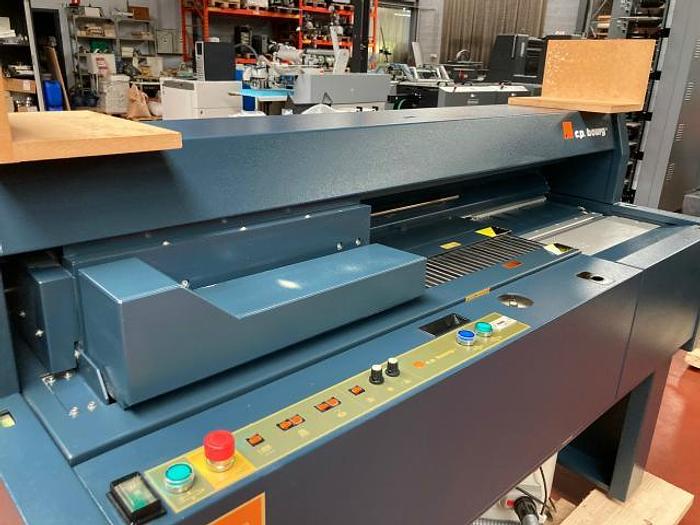

2010 CPBOURG BB2000

hot melt gluing binder CP BOURG BB2000 of 2010 n°630041376

The BB2000 binder produces high quality  cover  bound  or  padded documents. The binders’ unique shielded design allows for optimum operator safety, ease of operation, and quick set-up and changeovers for short-run, on demand publications. Bourg’s  no  tool  set-up  feature, combined with automatic cover clamping enhances quality and high speed production. Bourg’s BB2000 provides a binding thickness unique in its class of up to 60mm in thickness, including computer printouts ! The

maximum spine length which can be gripped by the gluing clamp is 450 mm

Automatic cover clamping, set counter standard, quick set-up, notching + roughing unit, dual heating process with separate heating of glue tank and drum applicator, easy-to-use microprocessor controls, powerful nipping action

Book size max : 450 mm (spine) x 320 mm /   17.7’’ x 12.5’’

Book size min. : 50 mm (spine) x 110 mm / 2’’ x 4.3’’

Book thickness max. : 60 mm  or  2.35’’ (+/- 600 sheets (80 gsm or 20lb))

Book thickness min. : 2 sheets 80 gsm or 20 lb

(theoritical - not to be used with covers)

Cover weight : 80-250 gsm or 20-110 lb (may require creasing)

Cover size max. : 450 mm x 700 mm / 17 .7’’ x 27.5’’

Cover size min. : 50 mm x 220 mm or 2’’ x 8.7’

Gluing temperature from 140°C to 165°C

Sensitiviy : +/- 2°C

Warm up time : 25 minutes (based on 140° C setting)

Max. cycles/hr : Up to 250 books (operator dependent and based on A4 size  or 8.5”x11” /  1cm or 3/8”books).

Power consumption : 2,7 kW - 220 Volts/1PH.

Dimensions : 172x73x114 cm

Weight : 245 kg
