OMM VENUS

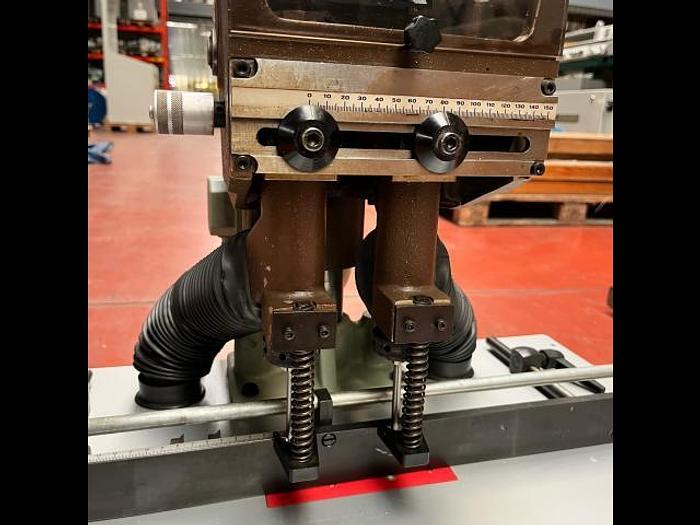

Paper drilling machine OMM VENUS n°01PE19870770083, table top model, 2 heads

• machine is especially designed to drill two holes at time. The bedplate is pressed steel. The main bead unit is in cast aluminium.
• The drilling movement is manual by the use of a handle which is acting on a rack and gear with parts running on machined guides.
• The drilling heads are adjustable in order to have the drills at the same level. A tooth belt and a drive motor assist the drive of the drilling heads.
• The VENUS is equipped with a tabulator for the execution of multiple hole drilling and with a system for waste collection.
• WORKING TABLE SIZE 65 x 35 cm. - 20' 9/16 x 14'
• MOTOR POWER HP 0.75
• POWER SUPPLY 220 V - 380 V 3 fasi
• DRILLIG DEPTH 80 mm. - 3' ½
• MINIMUM DISTANCE BETWEEN HOLES 45 mm. - 1' ¾
• MAXIMUM DISTANCE BETWEEN HOLES 115 mm. - 4' 5/8
• DRILLING MAXIMUM THICKNESS 50 mm.
• DRILLING CAPACITY Diam. 3 - 14 mm.
• PACKING SIZES 81 x 77 x 69 cm. NET WEIGHT 56 Kg.
