2017 HORIZON BQ-270V

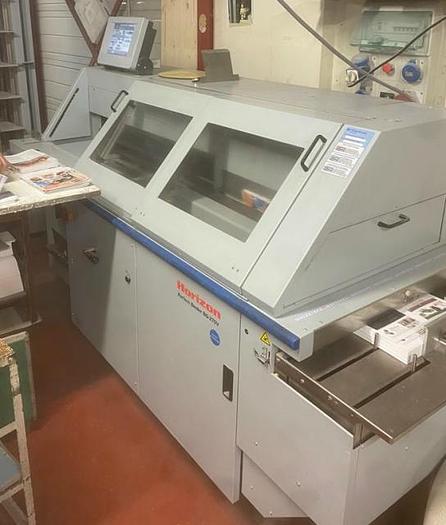

automated professional perfect binder HORIZON BQ-270V of 2017 n°041029, size 320x320 cmm, to produce professional quality books with sharp, square spines, from the first book to last

10.4 inch color touchscreen - book thickness caliper

produce books up to 50 mm thick at a maximum speed of 500 cycles per hour

1 carriage clamp automatically adjusted to the input book thickness

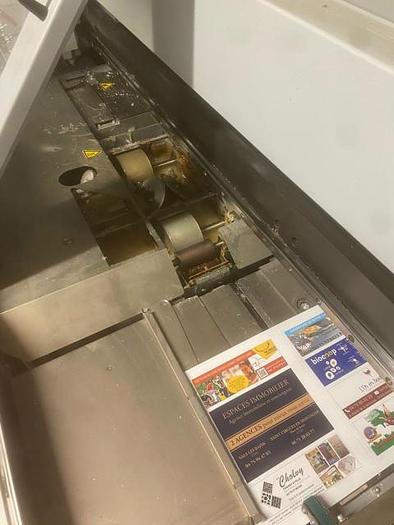

milling section for the spine with rotary milling and roughening blades, adjustable milling depth from 0 to 3 mm

glue tank with dual application rollers and side gluing rollers (adjustable amount of glue and glue length through the color touchscreen)

nipping section

suction cover feeder, cover scoring, cover registration

delivery to a vertical stacker below the book loading station

double and miss detection

EVA guing system

book block size :  Max. 320 x 320 mm - Mini. 135 x 105 mm

book block thickness from 2 sheets (1 mm) to 50 mm

cover weight from 82g to 302g/m²

cover size : Max. 320 mm x 660 mm - Mini. 135 mm x 230 mm

cover pile height : max. 70 mm

glue temperature : 120-180°C

warm-up time : 60 min.

production max. 500 cycles/h.

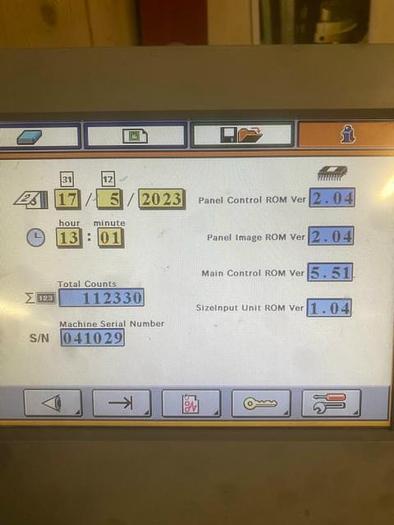

counter : 112.330 books
