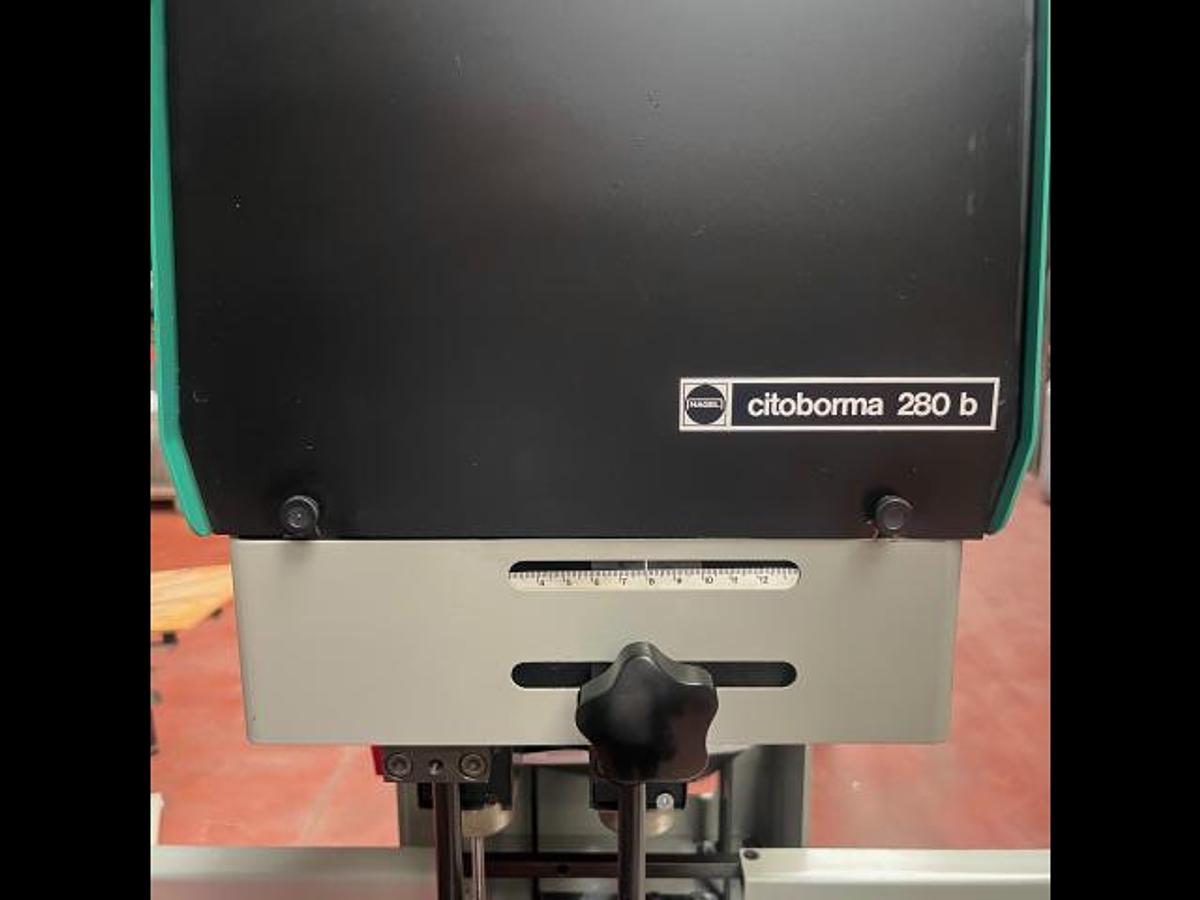

NAGEL CITOBORMA 280B

2 spindles paper drilling machine NAGEL CITOBORMA 280B , on foot model

2 spindles steplessly adjustable by hand wheel, distance of drill bits : 45-120 mm

sliding table mounted on ball bearings, adjustable stops which automatically release after each stroke, increase the output

drill bits adjustable in height

drill bits : 2 - 14 mm(3-phase) or 2-10 mm (single-phase)

distance between hole max. 410 mm, min. 6 mm

drilling capacity : 60 mm

max. block width : 480 mm

max. distance edge/hole : 102 mm

power : 0,5 kW
