2013 CYKLOS GPM 450 SPEED

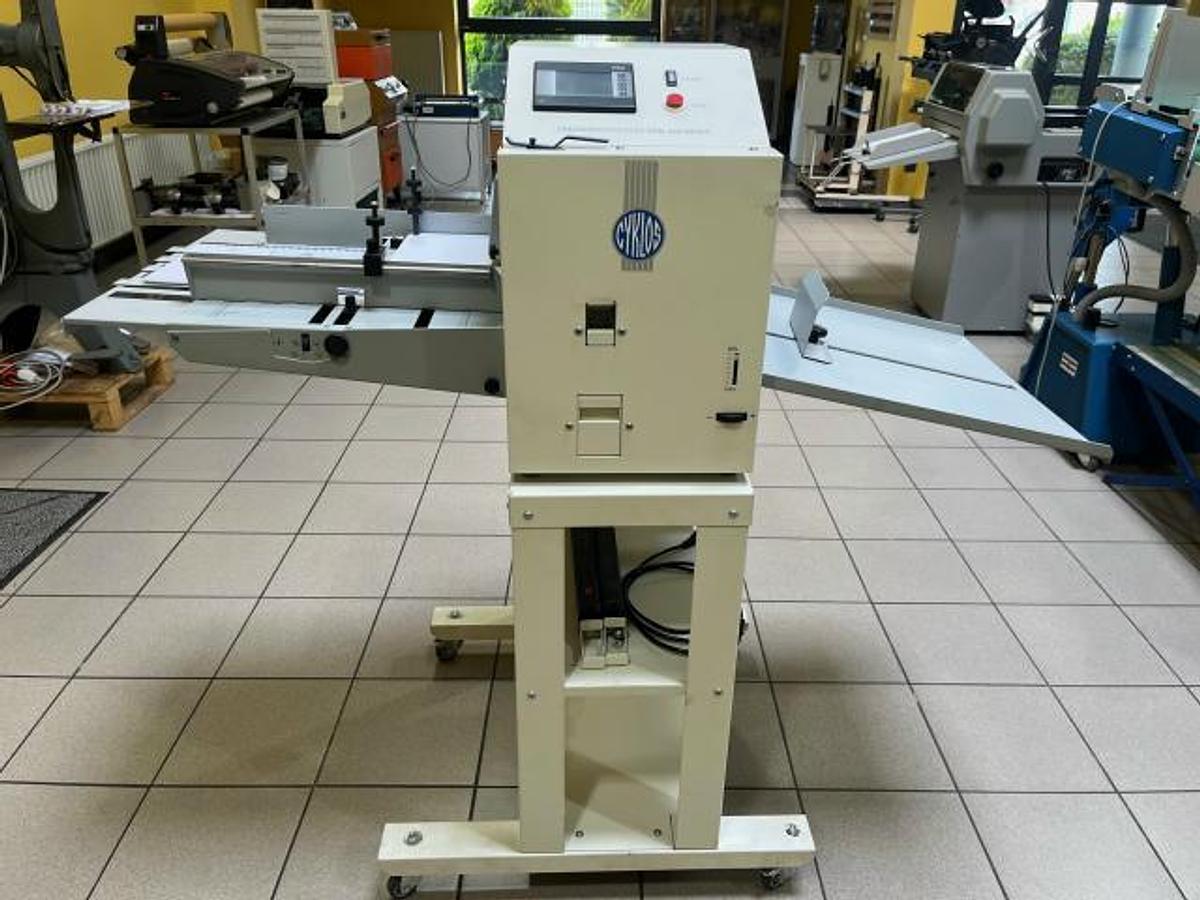

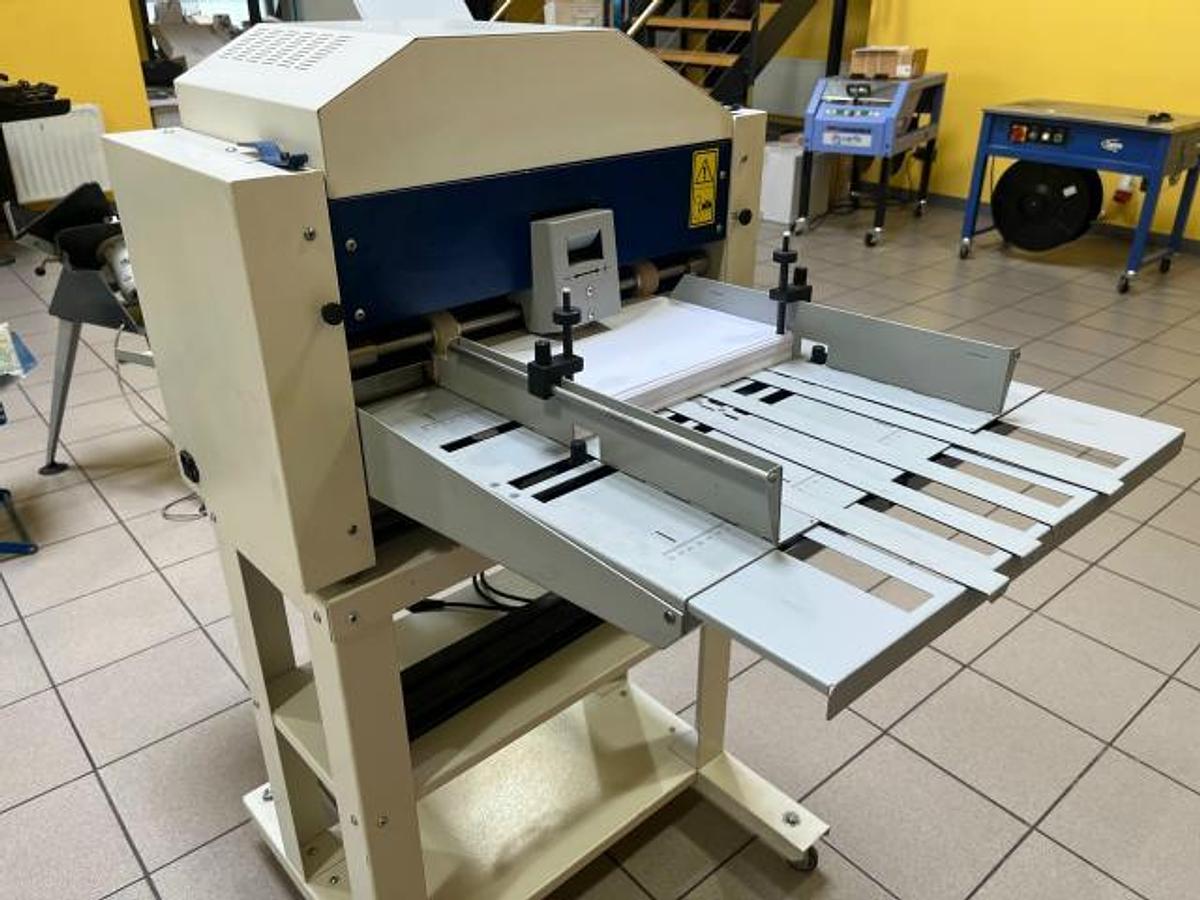

Automatic friction creasing-perforating-punching machine CYKLOS GPM 450 SPEED No. 13051902 year 2013

Friction creasing machine operating at a width of 450 mm with a throughput of up to 2,500 sheets/hour

 Sheets are drawn from the paper hopper, which can be continuously fed.

Operating parameters are entered via the touchscreen.

- High-quality "anvil" perforation

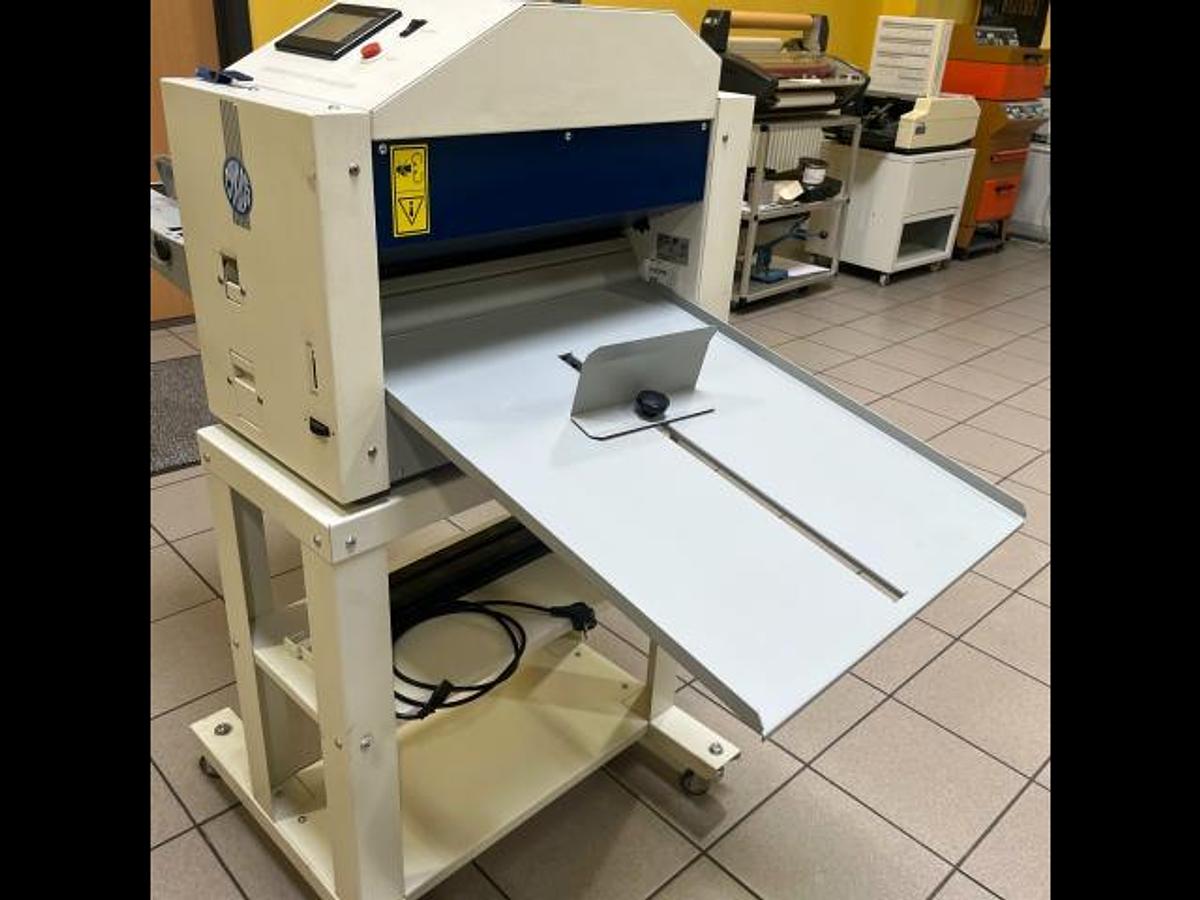

- Telescopic feed table

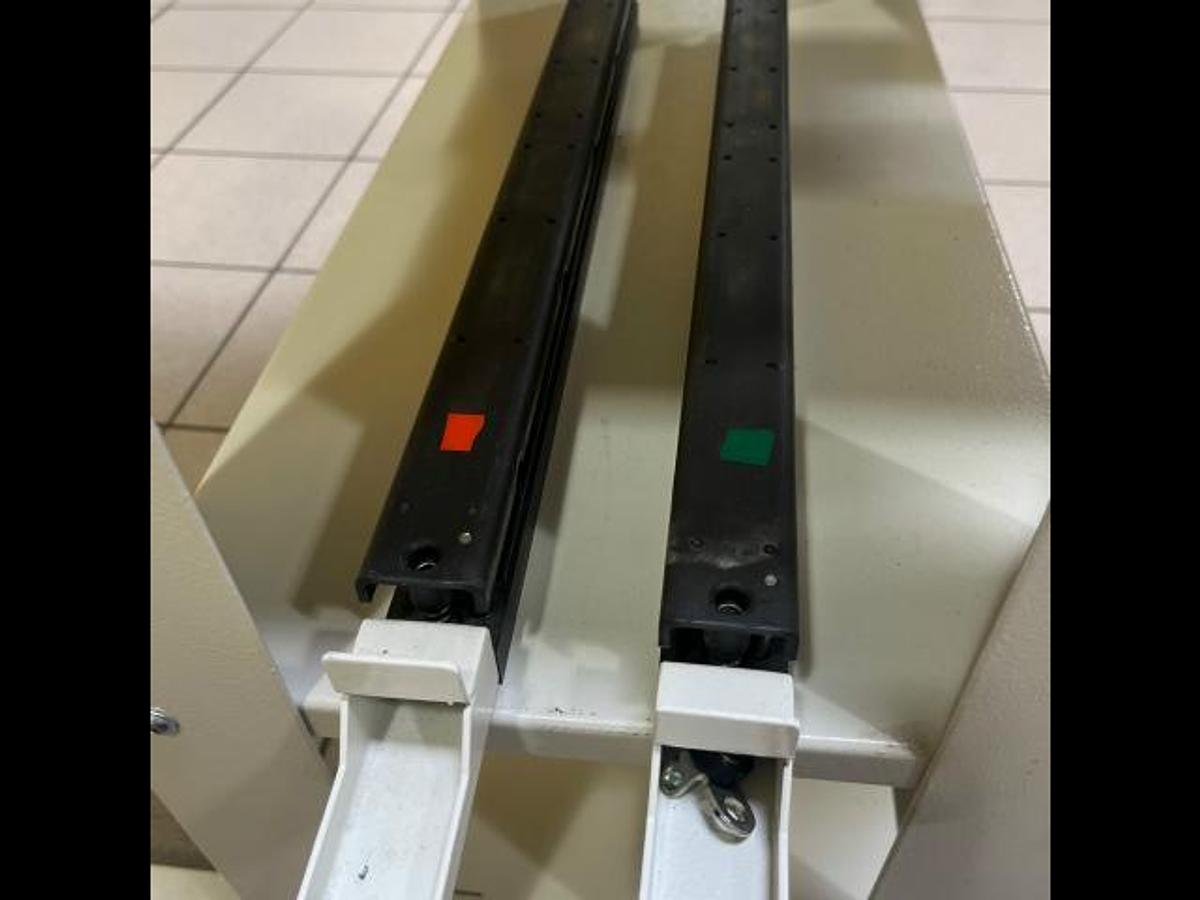

- Easily interchangeable tools

- Two creasing widths

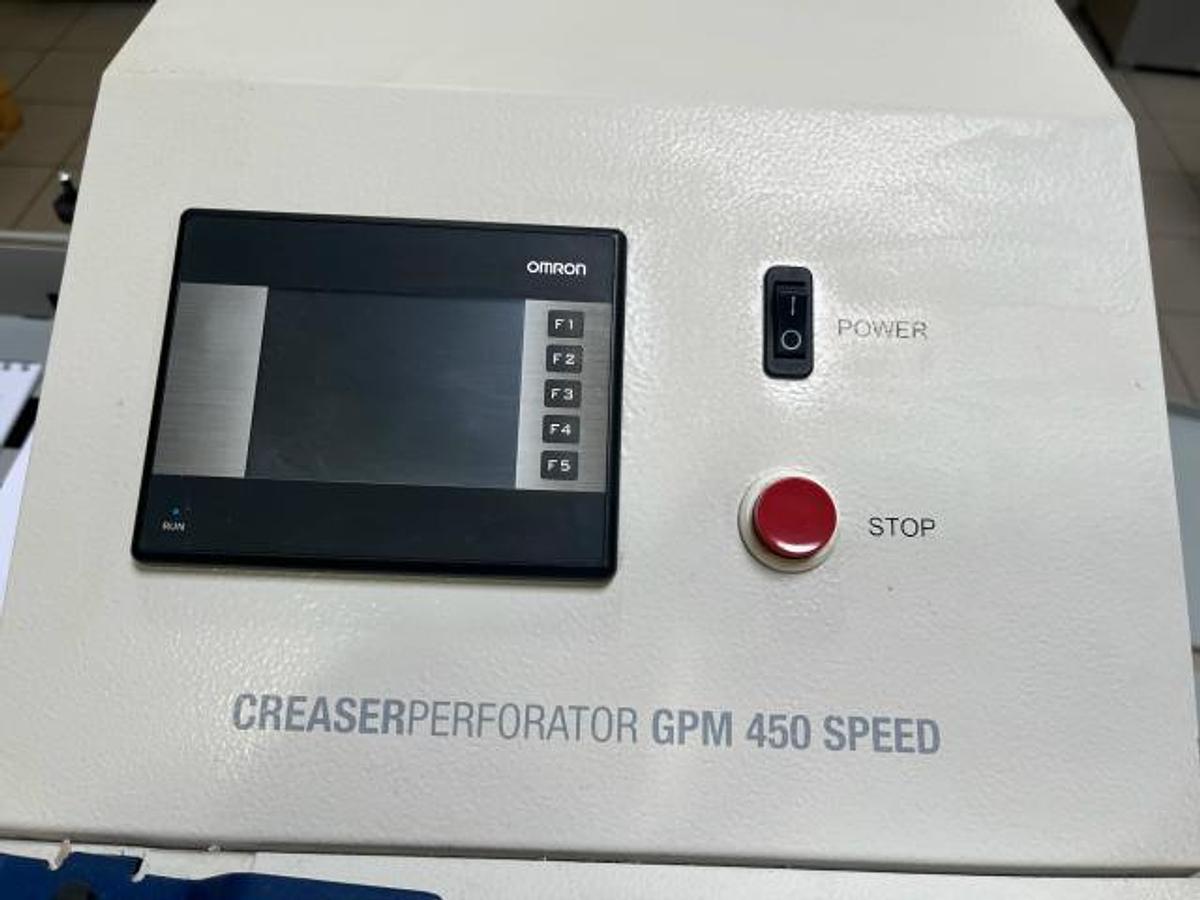

- Touchscreen

- Table suitable for A2 format

- 1.0 mm CITO creasing tool included

- 1.9 mm creasing tool (iron groove) included - 2:1 perforating tool, 9 TPI ​​included

Technical parameters:

a) Max. working width : 450mm

b) Recommended paper weight - creasing: 100-400gsm

Recommended paper weight - perforation: 80-250gsm

Recommended paper weight - punching: 80-250gsm

Maximum number of creases per page: 15

Number of programs: 5

Min. distance between creases: 2mm

Speed: 3500 A4 pages/h (with a scratch)

Dimensions: 750x670xH520mm Net weight: 120kg Gross weight: 157kg

Voltage/frequency: 230V/50-60Hz

Power, current :400W, 1,0A
